Basic Specifications
Jam Signal Type：
1: WH-101A-8-LG: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1+LOJACK
2: WH-101A-8-WG: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1+GPSL2
3: WH-101A-8-UV: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1 L2 L5+LOJACK+Walkie-Talkie UHF VHF+RC433 315 868 912MHz
4:WH-101A-8-W: Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G/5GHz
Output Power：Total 18W，1-3W each band
Jam Radius：2-40meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 3 cooling fan
Working Time：Not-stop Working
Product Size：385x 135x50 mm（not Include Antenna）
Product Weight: appr.3.5kg

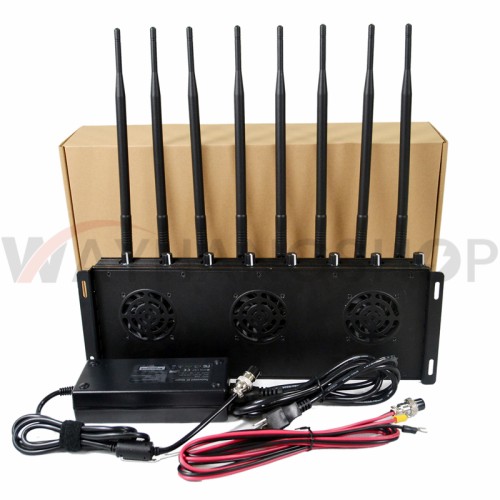

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x8,Car storage battery cable x1
Product Description
The Latest Mobile phone Signal Jammer 8 Antennas Adjustable 3G 4G Phone signal Blocker with 2.4G GPS,It also is a good quality multi-functional LOJACK UHF VHF WIFI5G and Remote control 433 315 MHz signal jammer ,Adjustable and built-in 3pcs cooling fan to support non-stop working.
Advantages
New module 8 chancel design, Customized for special frequency band
High output power, Total up to: 18W,jamming up to 40m (Still depends on the strength signal in given area.)
With Car storage battery Charger DC12V can be used in car
External Omni-directional antennas all the TX frequency covered down link only
Built-in good cooling system inside three fans, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
OEM Customized Service
Customized for special frequency band , Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
| Key technical specifications: WH-101A-8-LG |
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | LoJack | 167-175MHz | 35dBm/3W |
| 2 | CDMA or GSM | 851-894 or 925-960MHz | 35dBm/3W |
| 3 | DCS or PCS | 1805-1880 or 1920-1990MHz | 33dBm/2W |
| 4 | 3G | 2110-2170MHz | 33dBm/2W |
| 5 | 4G1 LTE | 700-803 or 790-862MHz | 35dBm/3W |
| 6 | 4G Wimax | 2500-2690 or 2300-2400MHz | 30dBm/1W |
| 7 | GPSL1 | 1570-1580MHz | 33dBm/2W |
| 8 | Wi-Fi 2.4G | 2400-2500MHz | 30dBm/1W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V |
| Dimensions: (length ,width, height) 385x 135x 50mm（not Include Antenna） |
| Packing size: 47*27*13cm Net weight: 3kg Gross weight: 3.5kg |
Total power:17W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
| Warranty: one year from delivery date |
| Key technical specifications: WH-101A-8-WG |
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 35dBm/3W |
| 2 | DCS or PCS | 1805-1880 or 1920-1990MHz | 33dBm/2W |
| 3 | 3G | 2110-2170MHz | 33dBm/2W |
| 4 | 4G1 LTE | 700-803 or 790-862MHz | 35dBm/3W |
| 5 | 4G Wimax | 2500-2690 or 2300-2400MHz | 30dBm/1W |
| 6 | WIFI2.4G | 2400-2500MHz | 35dBm/3W |
| 7 | GPSL1 | 1570-1580MHz | 33dBm/2W |
| 8 | GPSL2+L5&Spy Camera | 1170-1280MHz | 33dBm/2W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V |
| Dimensions: (length ,width, height) 385x 135x 50mm（not Include Antenna） |
| Packing size: 47*27*13cm Net weight: 3kg Gross weight: 3.5kg |
Total power:17W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
| Warranty: one year from delivery date |
| Key technical specifications: WH-101A-8-UV |
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 35dBm/3W |
| 2 | DCS or PCS | 1805-1880 or 1920-1990MHz | 33dBm/2W |
| 3 | 3G | 2110-2170MHz | 33dBm/2W |
| 4 | 4G1 LTE | 700-803 or 790-862MHz | 35dBm/3W |
| 5 | 4G Wimax | 2500-2690 or 2300-2400MHz | 30dBm/1W |
| 6 | RC315 | 315MHz | 35dBm/3W |
| 7 | VHF&LOJACK | 135-174MHz | 35dBm/3W |
| 8 | UHF&CDMA450&RC433 | 400-470MHz | 35dBm/3W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V |
| Dimensions: (length ,width, height) 385x 135x 50mm（not Include Antenna） |
| Packing size: 47*27*13cm Net weight: 3kg Gross weight: 3.5kg |
Total power:20W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
| Warranty: one year from delivery date |
| Key technical specifications: WH-101A-8-W |
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 35dBm/3W |
| 2 | DCS or PCS | 1805-1880 or 1920-1990MHz | 33dBm/2W |
| 3 | 3G | 2110-2170MHz | 33dBm/2W |
| 4 | 4G1 LTE | 700-803 or 790-862MHz | 35dBm/3W |
| 5 | 4G Wimax | 2500-2690 or 2300-2400MHz | 30dBm/1W |
| 6 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 7 | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| 8 | WIFI5.8G | 5500-5900MHz | 30dbm / 1W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V |
| Dimensions: (length ,width, height) 385x 135x 50mm（not Include Antenna） |
| Packing size: 47*27*13cm Net weight: 3kg Gross weight: 3.5kg |
Total power:14W
Shielding radius: (2-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
| Warranty: one year from delivery date |
