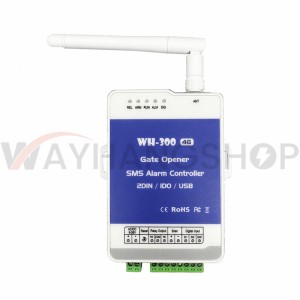

The WH-300 is a combo SMS alert & caller ID remote control system. The fully configurable relay output can be controlled in multiple ways to suit a range of applications. Users can also receive a customisable SMS notification on an activated alarm input. Configuration by SMS or app.

1. Fast Install--Installed and configured in a matter of minutes!

2. Remote Management--Configuration and management via SMS or app.

3. Extremely Reliable--Tried & tested mobile technology for over 10 years in global applications.

4. Universally Compatible--Suitable to monitor and/or remotely control virtually anything.

FEATURES

• Remote control by phone & alarm event detection by SMS

• Configuration by SMS or App WH Control

• Up to 1200 caller ID users more control units can be configured

• 2 Alarm inputs can be used to detect any kind of switched event

• Customisable SMS alarm input notification text

• Relay output - 1 fully configurable remote control relay

• Daily alarm and operation records can be checked

• Time limitation for access, user can call in to control only during the pre-set time period.

TECHNICAL SPECIFICATIONS

• Power Supply - 9-36VAC or 9-36VDC (Min. 1A)

• Consumption - live: 50mA standby: 20mA

• 4G GSM module: 4G-EU/AU/US;GSM850/900/1800/1900MHZ

• Dimensions - 91.5 × 63× 25 mm

• Wall mounting enclosure

• IP rating (not IP rated)

• Antenna type - SMA male

• Weight - 110g
